Metal Panel are one of the most attractive features of a Metal Building System, having contributed mightily for the growing popularity of Metal buildings. The term “Panel” in this context refers to the metal skins used as roof and wall panels, interior roof and wall liners, partition panel, fascia panels, soffit panels, etc.
Steel Solutions color panels are rolled out in single skin trapezoidal shape by roll forming line maintaining proper design solution and optimization between extra
stiffness and materials consumption. Sheets are custom roll-formed to suit given site measurements to a maximum length of 12m (appx. 40′-0′). Depending on site accessibility for delivery, sheet length between 0.1m and 12m require special transportation.

Tolerance: Length : +-5mm, Cover width +-4mm and Rib Height +- 1mm.
The Steel Panel is corrugated from Pre-Painted Steel Sheet whose base materials has minimum thickness of 0.42mm (Base metal thickness, BMT) & Yield Strength 550MPa made out of cold rolled steel and shall be coated with anti corrosive layer of hot dip metallic Aluminium-Zink alloy coating of Aluminium (55%) & Zinc (45%).
Base Steel Cold Rolled Steel (0.42mm BMT)
Standard AS 1397-1993 Grade80 (G550)
Yield Strength 550 MPa

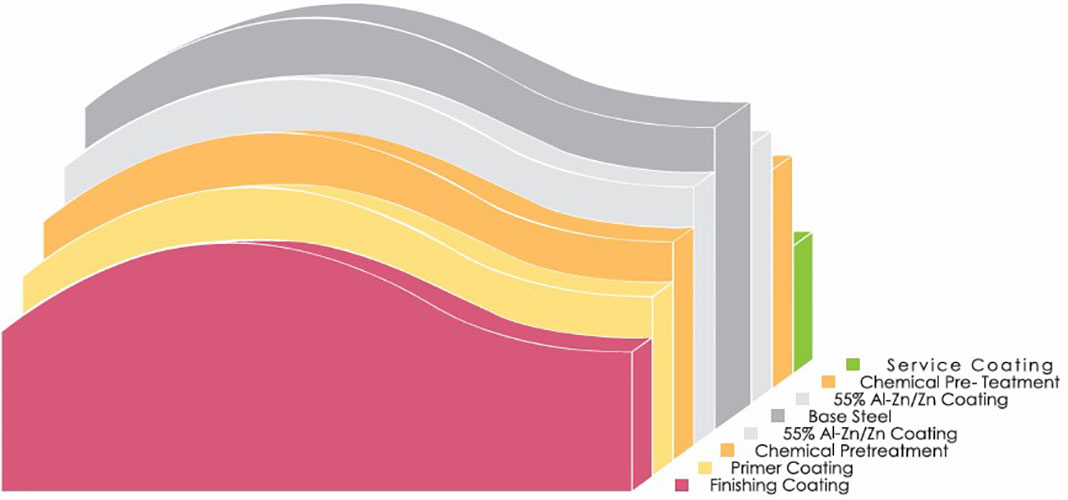

Pre-Treatment Proprietary Corrosion Converting Coating
Substrate Aluminium-Zink alloy Coating AZ-150(150 g/m2)or depending on the product.
Aluminium (55%), Zink (43.4%) & Silicon (1.6%) are Solidified at 600 C high
Temperature The whole structure is a quaternary Al-Fe-Si-Zn which becomes a
Protection layer on the Steel sheet hence preventing the penetration of
Corrosive factors on steel Paint System Primer coating – Epoxy Primer Finish Coating – Polyvinylidene Fluoride (PVDF)

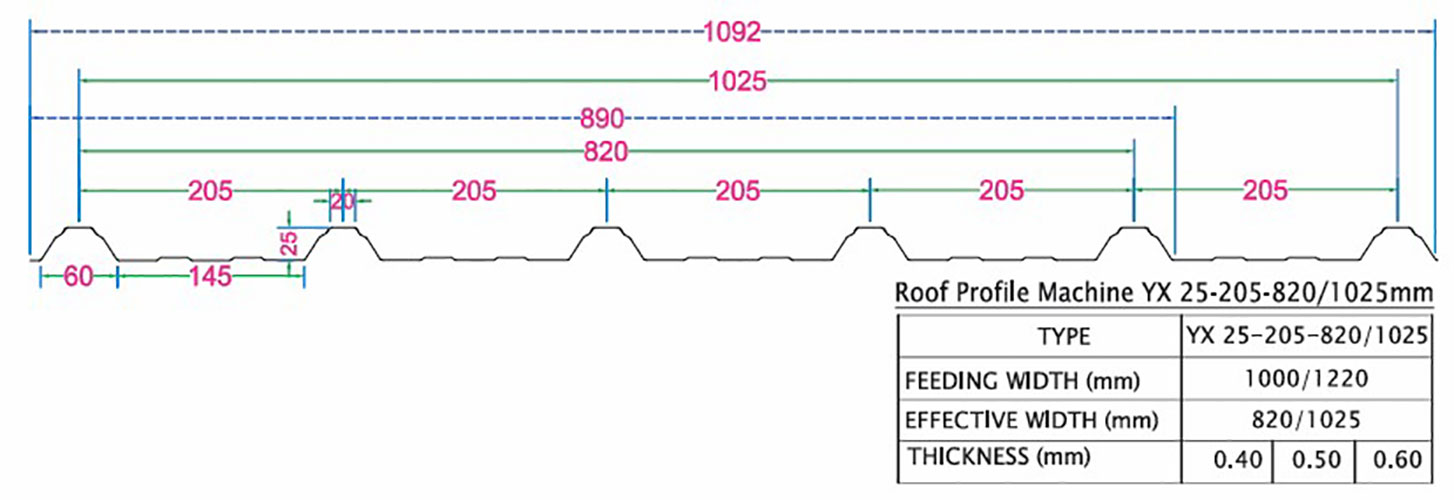

Profile Single Skin Trapezoidal
Fastener # 12-16x50mm, Hex-Head self-Drilling or Self-Tapping Screw depending on support thickness
